Pipe And Valve Identification

A comprehensive collection of pipe and valve marking
supplies, tools and identification systems


The ASME (ANSI) Standard for pipe identification is a widely used guideline in determining pipe identification requirements. The purpose of the standard is to:



» “Assist in identification of hazardous materials conveyed in piping systems and their hazards when released into the environment.”

» “Pipes are defined as conduits for the transport of gases, liquids, semi-liquids or fine particulate dust.”

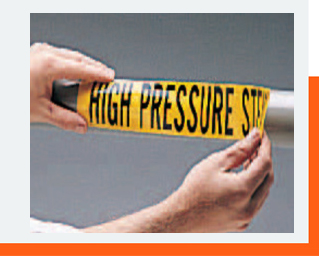

Self-Sticking Vinyl Pipe Markers



» Markers meet the requirements of the ASME (ANSI) A13.1 Standard for the identification of piping system contents when used with Directional Flow Arrow Tape

» Durable B-946 material ideal for indoor and outdoor environments

» Supplied on a coated backing material that makes handling and installation easy

» Recommended to use Directional Flow Arrow Tape to indicate flow direction

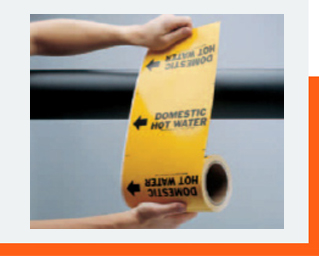

Roll Form Pipe Markers



» Eliminates need for precise measurement of pipe diameter -- simply cut to the size you need from 30’ long roll.

» B-946 material adheres to itself for easy wrap-around marker installation.

» Legend repeats 65 times per roll Choose from more than 75 stock legends (go to www.bradyid.com for all legends) or customize your own legend.

» Available in both 8” and 12” widths.

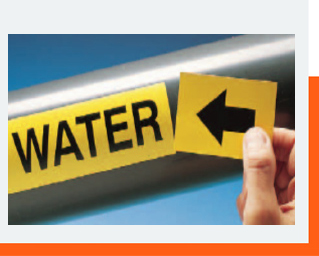

Pipe Markers-To-Go


» Made of economical B-736 surface printed plastic for use on smooth, clean, dry pipe surfaces.

» Markers withstand temperatures from -40°F to 212°F

» Supplied in rolls of 25 identical markers and matching arrows.

» Arrows may be applied to indicate flow in either direction.

» Choose from nearly 90 stock legends (go to www.bradyid.com for all legends)

» Ideal for on-the-spot repair or replacement of damaged or missing markers

Valve Tags

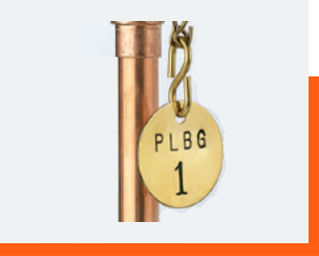

Stock Stamped Brass Valve Tags


» 19 gauge cartridge brass (40 mils thick)

» 1-1⁄2” diameter

» Black filled text for easy readability

» In the first column, find the desired service abbreviation text (top line 1 of your tag).

» Follow the row across to find the stock number for your serial sequence (bottom line 2 of your tag).

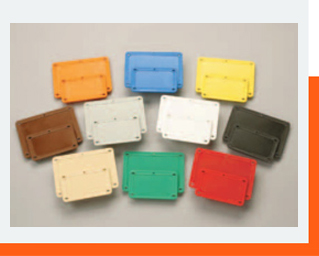

Durable Plastic Tags


» Durable Plastic Tags are lightweight, non-corrosive, non-conductive and impact resistant.

» Tag withstands temperatures between -40°F to 260°F

» Rounded corners and hole punched.

» Tags are sold individually.

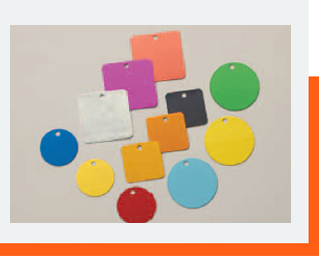

Stock Blank Aluminum Tags


» Anodized aluminum is dyed to offer color-coding options not available with brass tags.

» Available in twelve colors.

» Choose from 1-1⁄2” or 2” round styles.

Custom Engraved Aluminum Tags


» Durable 19 gauge aluminum tags

» Available in round or square shapes in either 1-1⁄2” or 2” sizes.

» Withstands temperatures of 233˚ F at a consistent heat.

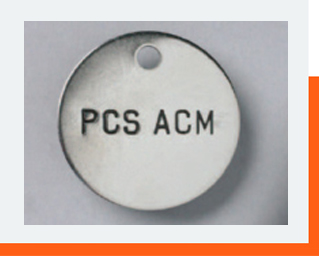

Custom Stamped Aluminum Tags


» Durable 19 gauge aluminum tags.

» Available in round or square shapes in either 1-1⁄2” or 2” sizes.

» Withstands temperatures of 1500˚

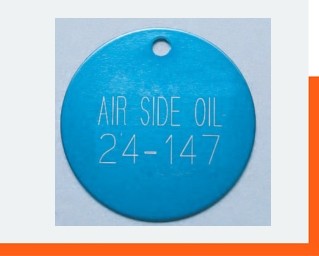

Aluminum Valve Tags


» Available in four colors: red, yellow, blue and green.

» Choose round or square styles in 1-1⁄2” or 2” sizes.
