Phoenix Contact Power Supplies

QUINT POWER – power supplies with maximum functionality



The QUINT POWER supplies with maximum functionality offer you superior system availability, thanks to SFB technology and integrated NFC interface for individual configuration.

» AC or DC input: single-phase, 3-phase
» DC output: power up to 1000 W
» Voltages: 12, 24, 48 V DC



SFB (Selective Fuse Breaking) technology :-
» 6 times the nominal current for 15 ms.
» Reliably switches off faulty current paths in the event of a short circuit.
» Important system parts remain in operation without any interruption.



NFC Technology (Near Field Communication) :-

» Signaling thresholds and characteristic curves can be individually adjusted wirelessly via the NFC interface.

» Setting parameters via mobile terminal devices or PCs.

TRIO POWER – power supplies with standard functionality



The TRIO POWER supplies combine standard functionality with high quality and reliability, making the power supplies ideal for use in machine building.
» AC input: single-phase, 3-phase
» DC output: power up to 1000 W
» Voltages: 12, 24, 48 V DC

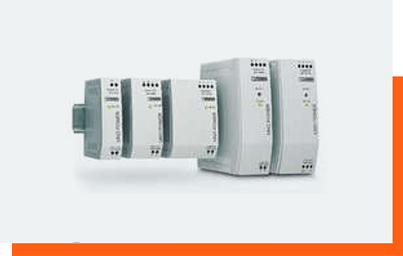

UNO POWER – power supplies with basic functionality



Thanks to their high power density, UNO POWER power supplies offer the ideal solution for loads up to 240 W, particularly in compact control boxes.
» AC input: single-phase
» DC output: power up to 240 W
» Voltages: 5, 12, 15, 24, 48 V DC

STEP POWER – power supplies for installation distributors and flat control panels



The STEP POWER power supplies are ideal for installation distributors and flat control panels. The low standby losses and high degree of efficiency make for maximum power efficiency in its class.
» AC or DC input: single-phase, 3-phase
» DC output: power up to 1000 W
» Voltages: 12, 24, 48 V DC

MINI POWER – power supplies for measurement and control technology



The MINI POWER power supplies can be used anywhere, where the modular electronics housings are seen as standard. They are perfect power supplies for measurement and control technology.
» AC or DC input: single-phase
» DC output: power up to 100 W
» Voltages: 5, 12, 15, 24, 48 V DC
